UN5030 Fixed Focus Lens, 1/2.8" Sensor, 4.2mm, F2.3 Aperture
Filter
UN5030 Fixed Focus Lens, 1/2.8" Sensor, 4.2mm, F2.3 Aperture

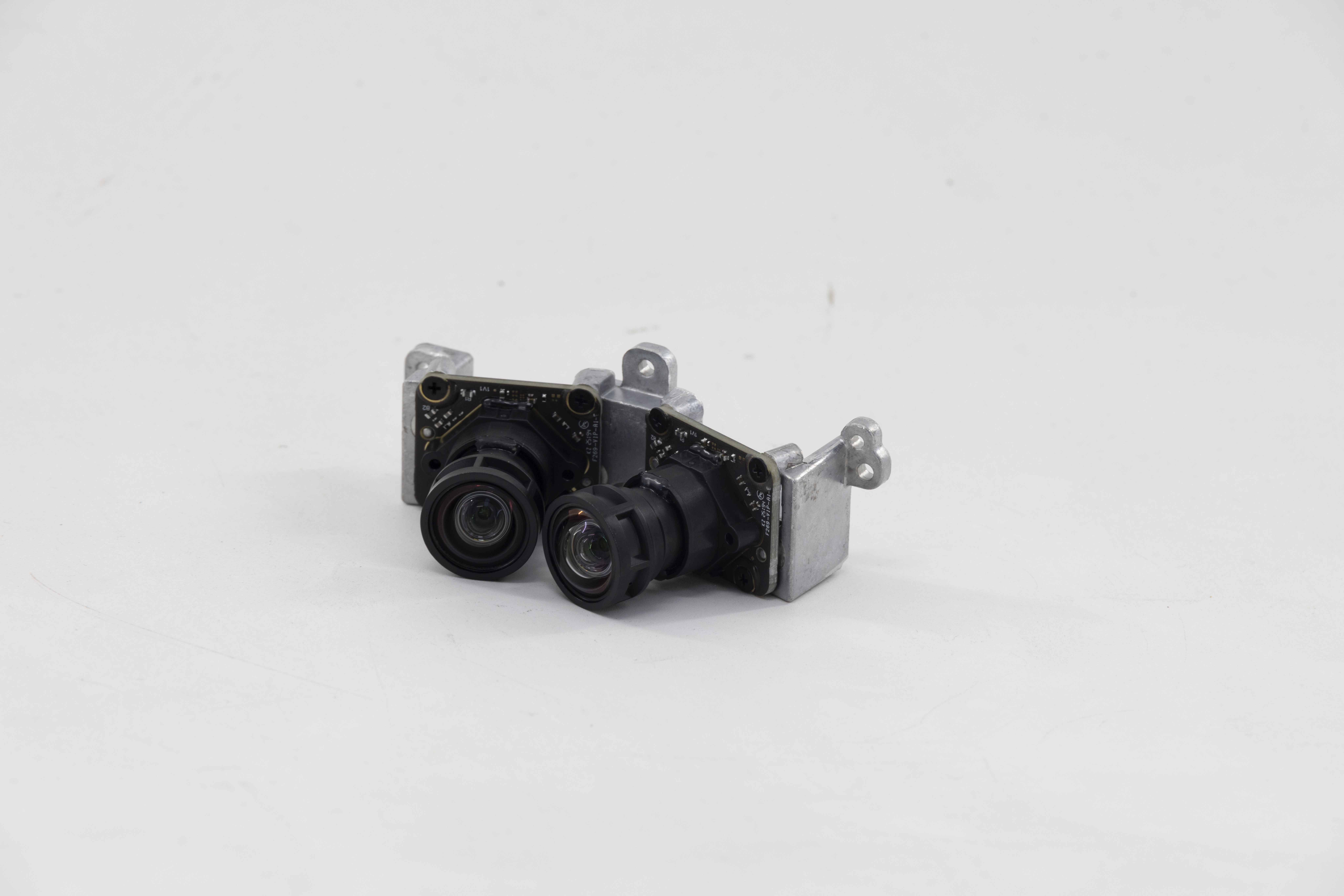

UN5030 fixed focus lens specially designed for high-end video conferencing systems, equipped with 1/1.8" large-size sensor and 48 megapixel ultra high resolution, delivering delicate and refined picture quality. F2.3 aperture combined with long depth of field optical design, whether close-up or distant shooting, can be clear and sharp without frequent refocusing, which is crucial for professional meetings where participants and camera distances vary. Its dual-lens stitching technology can seamlessly stitch images from two lenses into one continuous frame, expanding the field of view for medium and large conference rooms. This fixed focus lens features low distortion, uniform illumination, natural and realistic imaging, providing high-performance and stable optical solutions for enterprise-level meetings and hybrid collaboration environments.
$14.40
UN5030,1/1.8",4.2mm±5%,2.3±5%,27±0.3 mm(IR+CG:0.51),2.9±0.2 mm(IR+CG:0.51),∅8.4mm,87°±3° (φ8.0mm),73.1°±3° (φ6.4mm),58°±3° (φ4.8mm),≥45%,-2%<X<0%,14°±3°
1/2.8" large sensor, presenting fine details
48MP ultra high resolution, bringing clear video
F2.3 aperture, bringing clear, low-noise visual effects
Long depth of field, clearly presenting objects near and far
1
Buy now
If you have additional requirements for this product, you can Contact Usfor customized services
5M high-definition resolution
clear details, and accurate recognition
Large aperture
clear and bright image
Product Parameters
Part Number
UN5030
Sensor Type
1/1.8"
Focal Length
4.2mm±5%
FNo.
2.3±5%
Total Length
27±0.3 mm(IR+CG:0.51)
Mechanical BFL
2.9±0.2 mm(IR+CG:0.51)
Max Image Circle
∅8.4mm
Optical FOV (D)
87°±3° (φ8.0mm)
Optical FOV (H)
73.1°±3° (φ6.4mm)
Optical FOV (V)
58°±3° (φ4.8mm)
Relative Illumination
≥45%
TV Distortion
-2%<X<0%
MAX Chief Ray Angle
14°±3°
Download Excel List

UN5030 fixed focus lens specially designed for high-end video conferencing systems, equipped with 1/1.8" large-size sensor and 48 megapixel ultra high resolution, delivering delicate and refined picture quality. F2.3 aperture combined with long depth of field optical design, whether close-up or distant shooting, can be clear and sharp without frequent refocusing, which is crucial for professional meetings where participants and camera distances vary. Its dual-lens stitching technology can seamlessly stitch images from two lenses into one continuous frame, expanding the field of view for medium and large conference rooms. This fixed focus lens features low distortion, uniform illumination, natural and realistic imaging, providing high-performance and stable optical solutions for enterprise-level meetings and hybrid collaboration environments.
