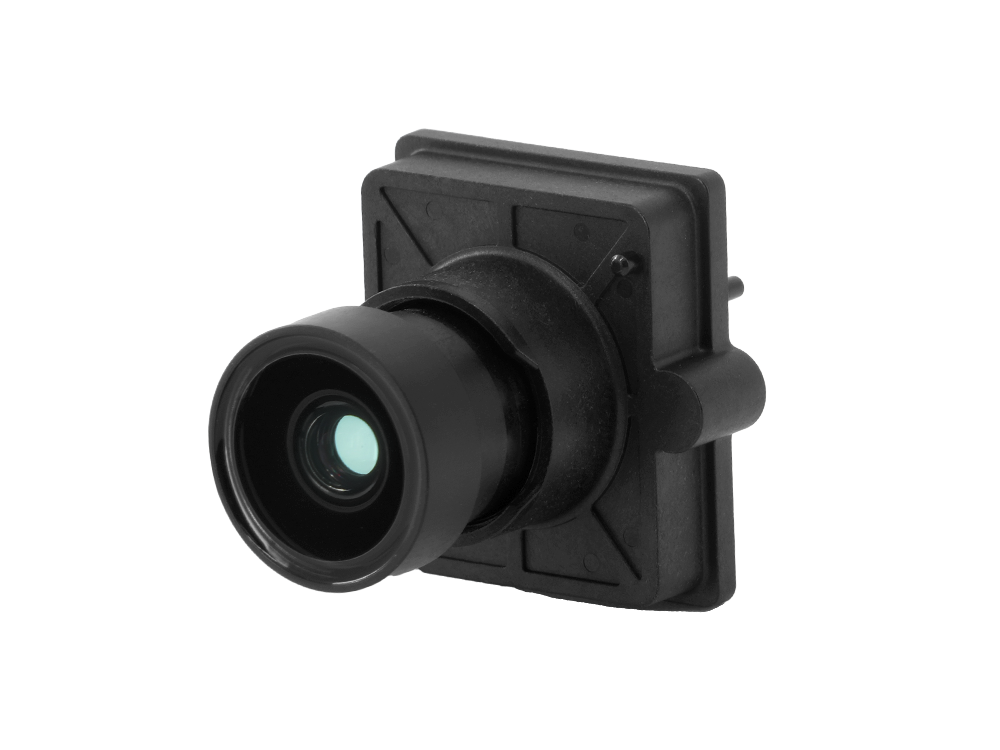

UN0516 Fixed Focus Lens, 1/2.8" Sensor, 3.5mm, F1.1 Aperture
Filter
UN0516 Fixed Focus Lens, 1/2.8" Sensor, 3.5mm, F1.1 Aperture
UN0516 fixed focus lens features ultra-large F1.1 aperture, with night vision clarity comparable to daytime and excellent detail capture. Equipped with 1/2.8" sensor and 3.5mm focal length, it provides 115° diagonal wide-angle field of view, covering wider areas with fewer blind spots. With day-night co-axial technology, it maintains clear and sharp focus all day without repeated focus adjustment. Even in low-light environments, the lens maintains high brightness and low noise, making it the ideal choice for 24/7 monitoring applications such as home security and intelligent surveillance, providing reliable protection anytime, anywhere.
$6.30
UN0516,1/2.8",3.5±5%mm,1.1±10%,22.5±0.3 mm,4±0.2 mm,∅7.2mm,115°±3°(φ6.388mm),97°±3° (φ5.568mm),52°±3° (φ3.132mm),≥43%,≥-16%,13°±3°
F1.1 ultra-large aperture, clear and detailed images day or night
1
Buy now
If you have additional requirements for this product, you can Contact Usfor customized services
5M high-definition resolution
clear details, and accurate recognition
Large aperture
clear and bright image
Product Parameters
Part Number
UN0516
Sensor Type
1/2.8"
Focal Length
3.5±5%mm
FNo.
1.1±10%
Total Length
22.5±0.3 mm
Mechanical BFL
4±0.2 mm
Max Image Circle
∅7.2mm
Optical FOV (D)
115°±3°(φ6.388mm)
Optical FOV (H)
97°±3° (φ5.568mm)
Optical FOV (V)
52°±3° (φ3.132mm)
Relative Illumination
≥43%
TV Distortion
≥-16%
MAX Chief Ray Angle
13°±3°
Download Excel List

UN0516 fixed focus lens features ultra-large F1.1 aperture, with night vision clarity comparable to daytime and excellent detail capture. Equipped with 1/2.8" sensor and 3.5mm focal length, it provides 115° diagonal wide-angle field of view, covering wider areas with fewer blind spots. With day-night co-axial technology, it maintains clear and sharp focus all day without repeated focus adjustment. Even in low-light environments, the lens maintains high brightness and low noise, making it the ideal choice for 24/7 monitoring applications such as home security and intelligent surveillance, providing reliable protection anytime, anywhere.
